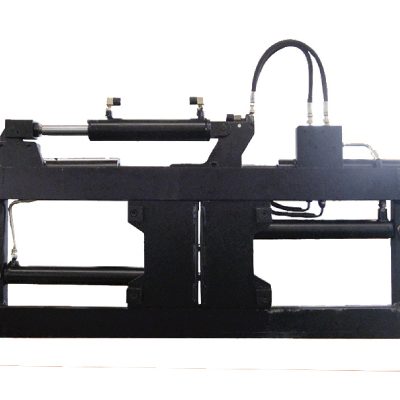

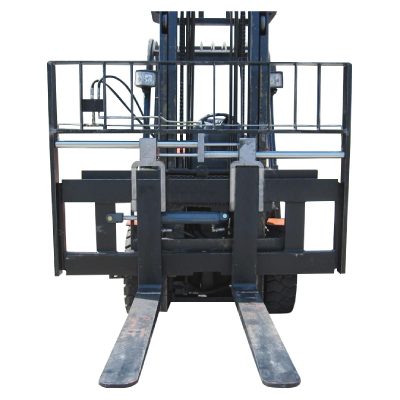

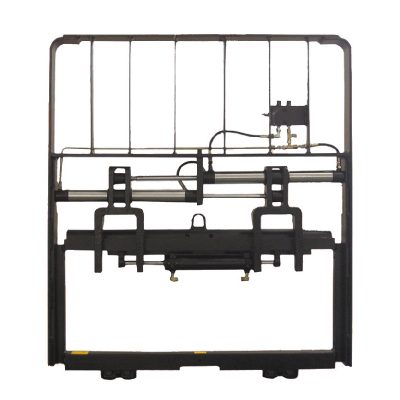

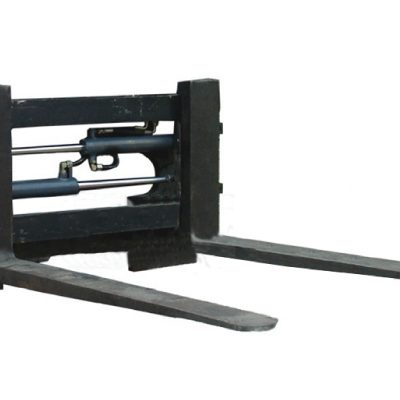

Posisi lampiran garpu lampiran kanthi gerakan sisih

Fork positioner adjusts the distance between forks through the hydraulic drive, reduces the labor intensity and improves efficiency, suitable for different specification tray handling occasion.

Pusat Kapabilitas @ Muat (kg @ mm)	Katalog	Kelas Dipasang	Lateral Range (mm)	Carriage Width (A)(mm)	Bobot (kg)	Effective Thickness (ET)mm)	Range Opening (mm)	Pusat Dpi Gravitasi (CGV) (mm)	Pusat Gravitasi Horisontal (CGH) (mm)
2500@500	SLC-A002FP	2	± 100	1040	115	75	45-960	255	35
2500@500	SLC-A003FP	2	± 100	1100	122	75	45-1020	255	35
4500@500	SLC-B002FP	3	± 100	1100	140	84	50-1000	270	40
4500@500	SLC-B003FP	3	± 100	1150	148	84	50-1050	270	40
4500@500	SLC-B004FP	3	± 100	1200	155	84	50-1100	270	40
4500@500	SLC-B005FP	3	± 100	1380	175	84	50-1280	270	40
4500@500	SLC-B006FP	3	± 100	1430	186	84	50-1330	270	40
6800@600	SLC-C005FP	4	±150	1535	350	98	50-1420	382	55
6800@600	SLC-C006FP	4	±150	1710	382	98	50-1690	382	55
6800@600	SLC-C007FP	4	±150	1845	410	98	50-1720	382	55

Note:1)Please get the actual comprehensive carrying capacity of forklift/attachment from the forklift factory

2) Requires a forklift to increase the additional 2 sets of oil-way.

Rincian cepet

---

Panggonan Asal: Fujian, China (Mainland)
Jeneng merek: HUAMAI
Model Number:SLC-A002FP
Product name: fork positioner
Load capacity: 2500 kg
Kelas Pintu: 2
Carriage Width: 1100 mm
Opening Range: 80-1100 mm
Side shift distance: ±100 mm
Effective Thickness: 75 mm

---



Nambah Side Shift Kanggo Forklift, Posisi Poskoder Garpu 3
