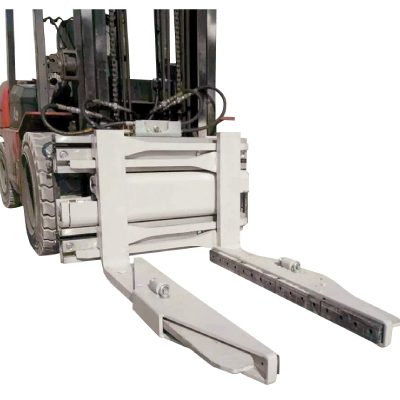

Forklift Attachment Blok Beton Clamp Kelas 3

Block clamp can safely and efficiently clamp a variety of stone and brick, suitable for handling and stacking operations without pallet in the floor tile, concrete, precast concrete, stone, graphite and other industries.

Spesifikasi

---

Pusat Kapabilitas @ Muat (kg @ mm)	Katalog	Kelas Dipasang	Range Opening (mm)	Lengan Dhuwur (A) (mm)	Arm Length (B) (mm)	Arm Thickness (D) (mm)	Frame Width (C) (mm)	Pusat Dpi Gravitasi (CGV) (mm)	Pusat Gravitasi Horisontal (CGH) (mm)	Effective Thickness (ET) (mm)	Bobot (kg)
2500@500	SLR-A001K	2	330-1650	240	1100	190	1015	218	216	152	740
2500@500	SLR-A002K	2	330-1650	240	1200	190	1015	218	240	152	765
2500@500	SLR-A003K	2	330-1650	240	1300	190	1015	218	256	152	795
2700@500	SLR-A004K	2	330-1650	240	1400	190	1015	218	270	152	825
2700@500	SLR-B001K	3	330-1650	240	1100	190	1015	218	216	152	740
2700@500	SLR-B002K	3	330-1650	240	1200	190	1015	218	240	152	765
2700@500	SLR-B003K	3	330-1650	240	1300	190	1015	218	255	152	795
2700@500	SLR-B004K	3	330-1650	240	1400	190	1015	218	270	152	825
2700@500	SLR-B005K	3	400-1900	240	1100	190	1220	218	200	152	785
2700@500	SLR-B006K	3	400-1900	240	1200	190	1220	218	220	152	810
2700@500	SLR-B007K	3	400-1900	240	1300	190	1220	218	242	152	842
2700@500	SLR-B008K	3	400-1900	240	1400	190	1220	218	260	152	870

Cathetan

---

1) Mangga entuk kapasitas nggawa forklift / lampiran lengkap saka pabrik forklift

2)Requires a forklift to increase the additional 2 sets of oil.

Video

---

Rincian cepet

---

Panggonan Asal: Fujian, China (Mainland)
Jeneng merek: HUAMAI
Standar utawa Nonstandard: Standard
Product name: block clamp
Kapasitas muatan: 2700 kg
Kelas Puncak: 3
Opening Range: 330-1650 mm
Lengan Lengan: 1200 mm
Arm Height: 240 mm
Arm Thickness: 190 mm
Frame Width: 1015 mm
Kekandelan efektif: 152 mm
Weight: 765 kg

---

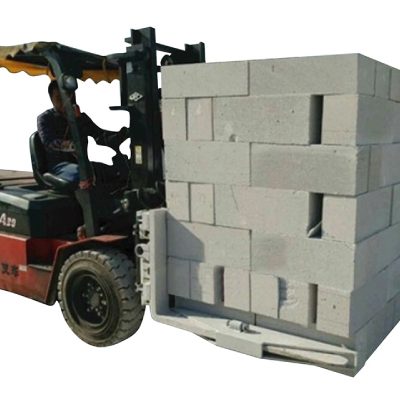

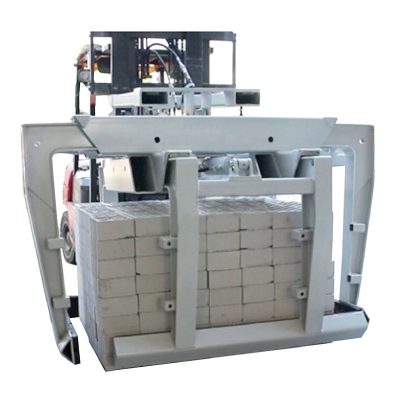

A concrete block clamp is a type of forklift attachment used for handling and transporting concrete blocks. The clamp attaches to the forklift and holds the concrete blocks in place, allowing the operator to easily pick up, move, and place the blocks.

The concrete block clamp is designed to fit a variety of forklifts and can be attached by quick-release mechanisms or bolts, depending on the model. Once attached, the concrete block clamp can be easily raised and lowered by the forklift’s hydraulic system. The clamp is also designed to securely hold the blocks in place, reducing the risk of injury and damage to the load and the environment.

One of the main advantages of the concrete block clamp is its versatility. It can handle a wide range of concrete blocks, making it a convenient accessory for a variety of material handling tasks. The clamp also makes it easier to transport the blocks, reducing the risk of injury to the operator and other workers.

Another advantage of the concrete block clamp is its efficiency. The clamp makes it easier to handle and transport the blocks, reducing the time and effort required to complete the task. This makes it more cost-effective and time-efficient, saving companies time and money in the long run.

In conclusion, the concrete block clamp is a useful tool for handling and transporting concrete blocks. It is versatile, efficient, and cost-effective, and is an essential tool for companies that handle heavy loads on a regular basis.
